LM2904F Ground Sense Operational Amplifiers

LM2904F Description

Datasheet Operational Amplifiers Ground Sense Operational Amplifiers LM358xxx LM324xxx LM2904xxx LM2902xxx General .
LM358xxx and LM2904xxx series are dual ground sense operational amplifiers.

LM2904F Features

* of low current consumption and wide operating voltage range from 3V to 32V (single power supply). Features
* Operable with a Single Power Supply
* Wide Operating Supply Voltage Range
* Input/output Ground Sense

LM2904F Applications

* Current Sense Application
* Buffer Application Amplifier
* Active Filter
* Consumer Electronics Key Specifications
* Operating Supply Voltage (Single Supply): 3.0V to 32.0V
* Operating Temperature Range: LM358xxx: -40°C to +85°C LM324xxx: -40°C to +85°C LM2904xxx:

📥 Download Datasheet

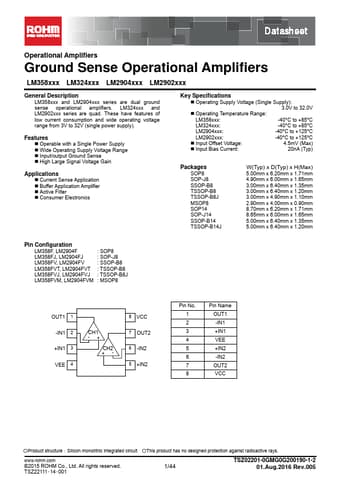

Preview of LM2904F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM2904F
Manufacturer
ROHM ↗
File Size
1.34 MB
Datasheet
LM2904F-ROHM.pdf
Description
Ground Sense Operational Amplifiers
