LM2904FV, LM2904F Ground Sense Operational Amplifiers

LM2904FV Description

Datasheet Operational Amplifiers Ground Sense Operational Amplifiers LM358xxx LM324xxx LM2904xxx LM2902xxx General .
LM358xxx and LM2904xxx series are dual ground sense operational amplifiers.

LM2904FV Features

* of low current consumption and wide operating voltage range from 3V to 32V (single power supply). Features
* Operable with a Single Power Supply
* Wide Operating Supply Voltage Range
* Input/output Ground Sense

LM2904FV Applications

* Current Sense Application
* Buffer Application Amplifier
* Active Filter
* Consumer Electronics Key Specifications
* Operating Supply Voltage (Single Supply): 3.0V to 32.0V
* Operating Temperature Range: LM358xxx: -40°C to +85°C LM324xxx: -40°C to +85°C LM2904xxx:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM2904FV, LM2904F. Please refer to the document for exact specifications by model.

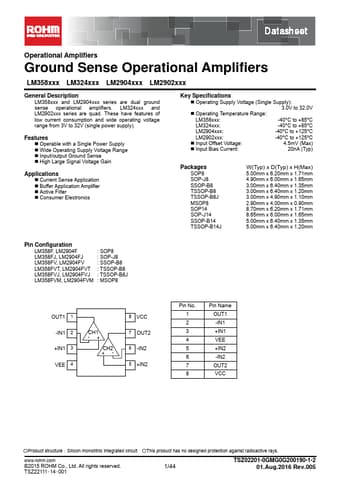

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM2904FV, LM2904F
Manufacturer
ROHM ↗
File Size
1.34 MB
Datasheet
LM2904F-ROHM.pdf
Description
Ground Sense Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: LM2904FV, LM2904F.
Please refer to the document for exact specifications by model.
