MSL0104RGBU1 Datasheet (ROHM)

MSL0104RGBU1, LEDs

SYMBOL CONDITION MIN.

TYP.

MAX.

UNITS Forward Voltage VF IF=20mA 2) 1.7 2.1 2.5 V Reverse Current IR VR=5V - - 10 μA Luminous Intensity 4) IV IF=20mA 3) 450 700 1100 mcd Dominant Wave Length 5) λD IF=20mA 3) 619 624 629 nm 2) Lighting time : 1msec 3) Lighting time : 1

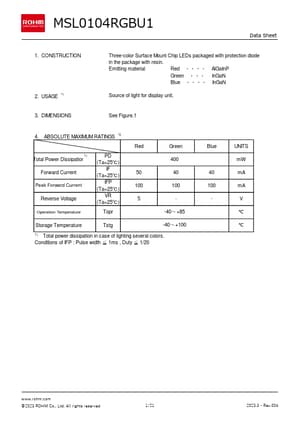

MSL0104RGBU1 Data Sheet 1.

CONSTRUCTION 2.

USAGE 1 Three-color Surface Mount Chip LEDs packaged with protection diode in the package with resin.

Emitting material Red　　AlGaInP Green　　 InGaN Blue　　InGaN Source of light for display unit.

DIMENSIONS See Figure.1 4.　ABSOLUTE MAXIMUM RATINGS 2 Red 1) Total Power Dissipation PD (Ta=25℃ ) Forward Current IF (Ta=25℃ ) 50 Peak Forward Current IFP (Ta=25℃ ) 100 Reverse Voltage VR (Ta=25℃ ) 5 Operation Temperature To
