MSL-154BV

Surface Mount Chip LEDs

MSL-154BV Features

* l l l l Push-Button Backlighting LCD Backlighting Symbol Backlighting Front Panel Indicator 1.50 (0.059) 2.0 (0.079) 1.50 (0.059) Absolute Maximum Ratings NOTE: 1. All dimensions are in millimeter (inches) 2. Tolerance is ± 0.1mm (.004") unless otherwise specified. @ TA=25oC Parameter Peak Forwa

MSL-154BV General Description

The MSL-154BV, a BLUE source Chip LED device, is designed in an indnstry standard package suitable for SMT assembly method. It utilizes GaN on SiC LED chip technology and water clear epoxy package. 3.20 ( 0.126 ) 2.00 (0.079) 1.10 (0.043) 1.60 ( 0.063 ) MSL-154BV Package Dimensions CATHODE MARK PO.

MSL-154BV Datasheet (33.43 KB)

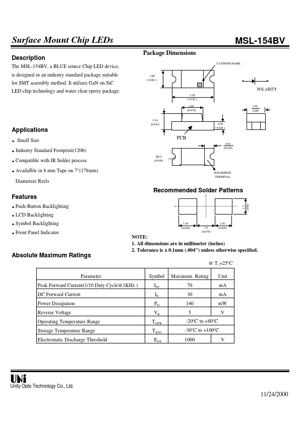

Preview of MSL-154BV PDF

Datasheet Details

Part number:

MSL-154BV

Manufacturer:

Unity Opto Technology

File Size:

33.43 KB

Description:

Surface mount chip leds.
