RB095B-30 - Schottky Barrier Diode

Name: RB095B-30
SKU: RB095B-30-1111872

ROHM

The RB095B-30 by ROHM is a Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	RB095B-30
Manufacturer	ROHM
File Size	1.03 MB
Description	Schottky Barrier Diode
Datasheet	RB095B-30-ROHM.pdf

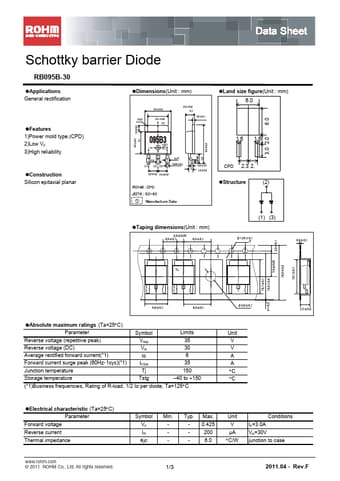

Additional preview pages of the RB095B-30 datasheet.

1)Power mold type. (CPD) 2)Low VF 3)High reliability.
Construction Silicon epitaxial planar Data Sheet.
Land size figure(Unit : mm) 6.0 3.0 2.0 6.0 1 6 1.6 CPD 2.3 2.
Structure (2).
Taping dimensions(Unit : mm) (1) (3).
Absolute maximum ratings (Ta=25C) Parameter Symbol Limits Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current(.
1) VRM VR Io 35 30 6 Forward current surge peak (60Hz1cyc)(.
1) Junction temperature.
