RB095B-90

Schottky Barrier Diode

RB095B-90 Features

* 1)Power mold type.(CPD) 2)Low VF 3)High reliability

* Construction Silicon epitaxial planar 1.6 1.6 ROHM : CPD JEITA : SC-63 Manufacture Date CPD 2.3 2.3

* Structure (2) (1) (3)

* Taping specifications(Unit : mm) 2.0 0.05 4.0 0.1 8.0 0.1 1.55 0.1 0 TL 7.5 0.05 2.5 0.1 0.4 0.1 1

RB095B-90 Datasheet (351.27 KB)

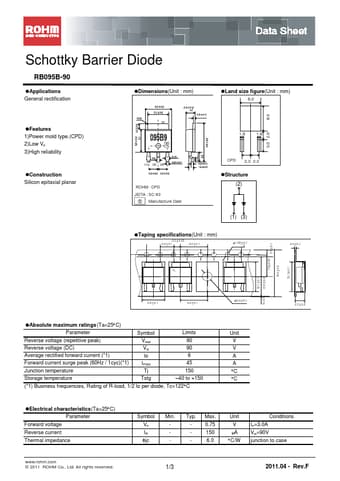

Preview of RB095B-90 PDF

Datasheet Details

Part number:

RB095B-90

Manufacturer:

ROHM ↗

File Size:

351.27 KB

Description:

Schottky barrier diode.
Schottky Barrier Diode RB095B-90 Applications General rectification Dimensions(Unit : mm) Data Sheet Land size figure(Unit : mm) 6..
