RSS100N03 - Transistors

ROHM

RSS100N03 Description

Transistor Switching (30V, ±10A) RSS100N03 RSS100N03 z.

RSS100N03 Applications

* Power switching, DC/DC converter. zExternal dimensions (Unit : mm) SOP8 5.0±0.2 (5) (8) Max.1.75 0.5±0.1 6.0±0.3 3.9±0.15 (4) (1) (1)Source (2)Source (3)Source (4)Gate (5)Drain (6)Drain (7)Drain (8)Drain 1.5±0.1 0.15 0.2±0.1 0.4±0.1 1.27 0.1 Each lead has same dimensions zStructure

📥 Download Datasheet

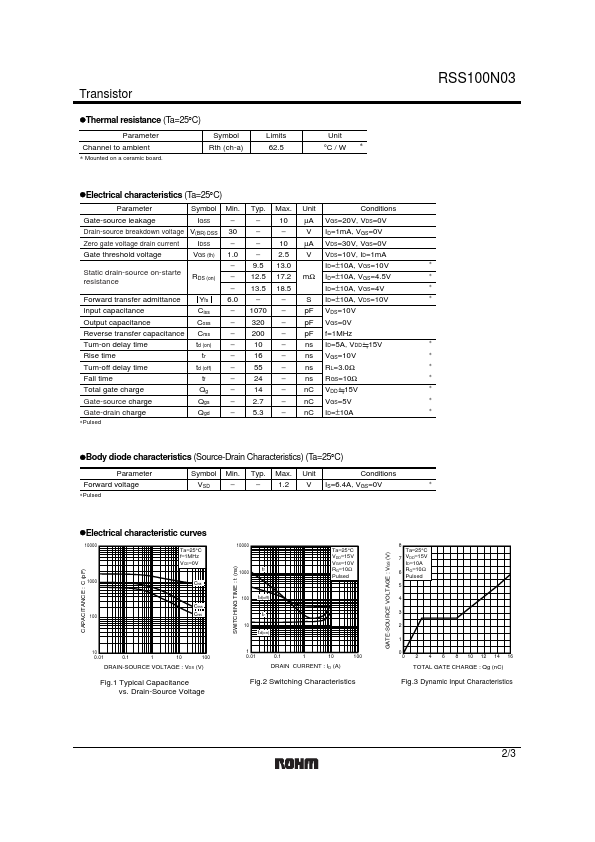

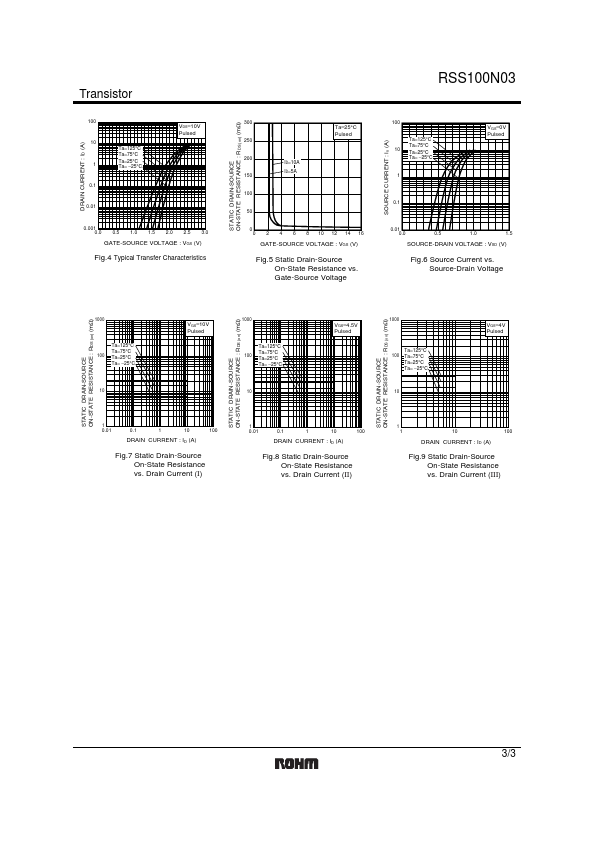

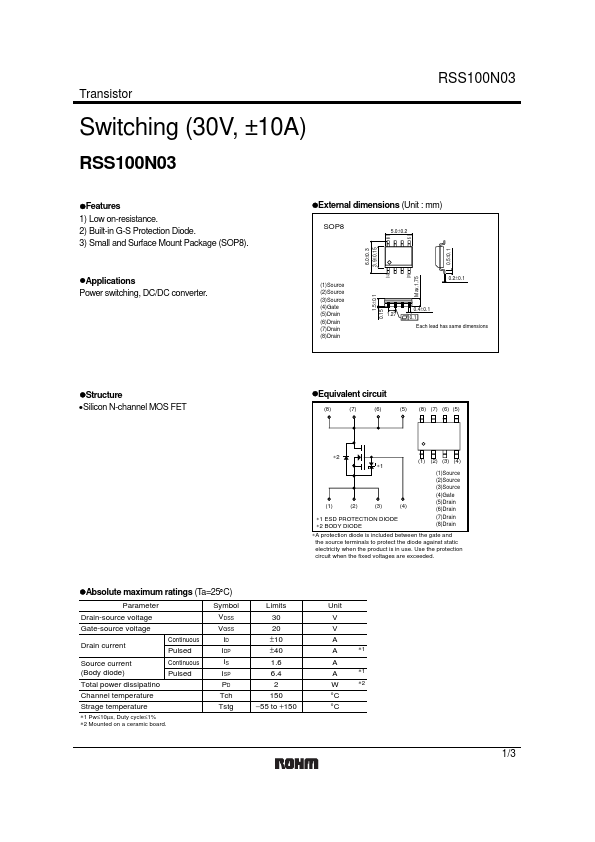

RSS100N03 Datasheet Preview — Preview of RSS100N03 PDF

Datasheet Details

Part number: RSS100N03
Manufacturer: ROHM ↗
File Size: 59.93 KB
Datasheet: RSS100N03-ROHM.pdf
Description: Transistors
