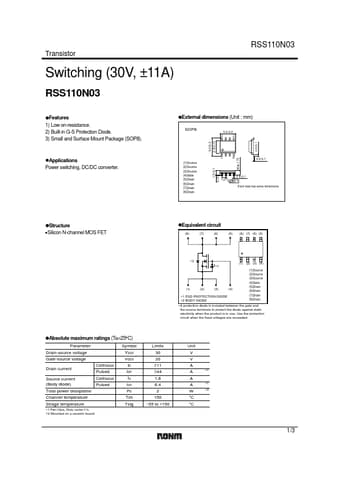

RSS110N03 Datasheet, Switching, Rohm

RSS110N03 Features

• Switching 1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small and Surface Mount Package (SOP8). zExternal dimensions (Unit : mm) SOP8 (8) 5.0±0.2 (5) 6.0±0.3 3.9±0.15 1.5±0.1 0.15

PDF File Details

Part number:

RSS110N03

Manufacturer:

ROHM ↗

File Size:

60.45kb

Download:

📄 Datasheet

Description:

Switching.

RSS110N03 Application

• Applications Power switching, DC/DC converter. (1)Source (2)Source (3)Source (4)Gate (5)Drain (6)Drain (7)Drain (8)Drain 1.27 0.4±0.1 0.1 Each le
