RSS140N03 Datasheet, Switching, Rohm

RSS140N03 Features

  • Switching 1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small and Surface Mount Package (SOP8). zExternal dimensions (Unit : mm) SOP8 (8) 5.0±0.2 (5) 6.0±0.3 3.9±0.15 1.5±0.1 0.15

PDF File Details

Part number:

RSS140N03

Manufacturer:

ROHM ↗

File Size:

61.27kb

Download:

📄 Datasheet

Description:

Switching.

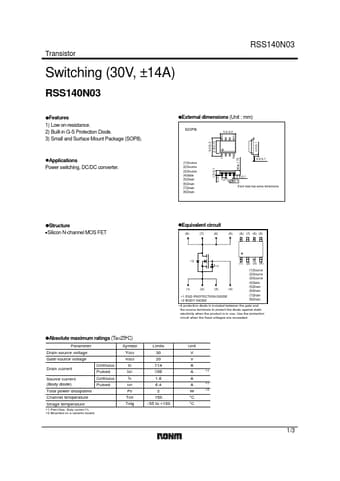

Datasheet Preview: RSS140N03 📥 Download PDF (61.27kb)
Page 2 of RSS140N03 Page 3 of RSS140N03

RSS140N03 Application

  • Applications Power switching, DC/DC converter. (1)Source (2)Source (3)Source (4)Gate (5)Drain (6)Drain (7)Drain (8)Drain 1.27 0.4±0.1 0.1 Each le
