RS1G34 Single Buffer Gate

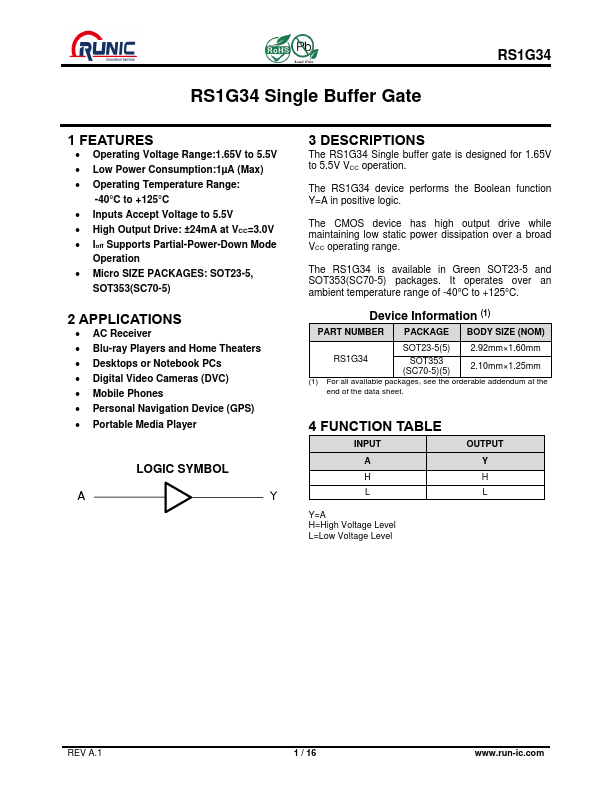

📥 Download Datasheet Datasheet Preview Page 1

Description

RS1G34 Single Buffer Gate RS1G34 1 .
The RS1G34 Single buffer gate is designed for 1.

📥 Download Datasheet

Preview of RS1G34 PDF

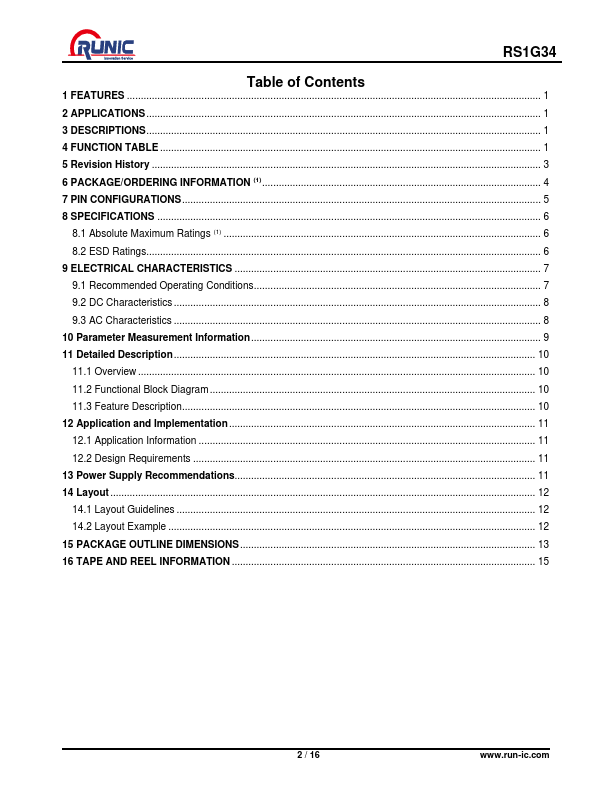

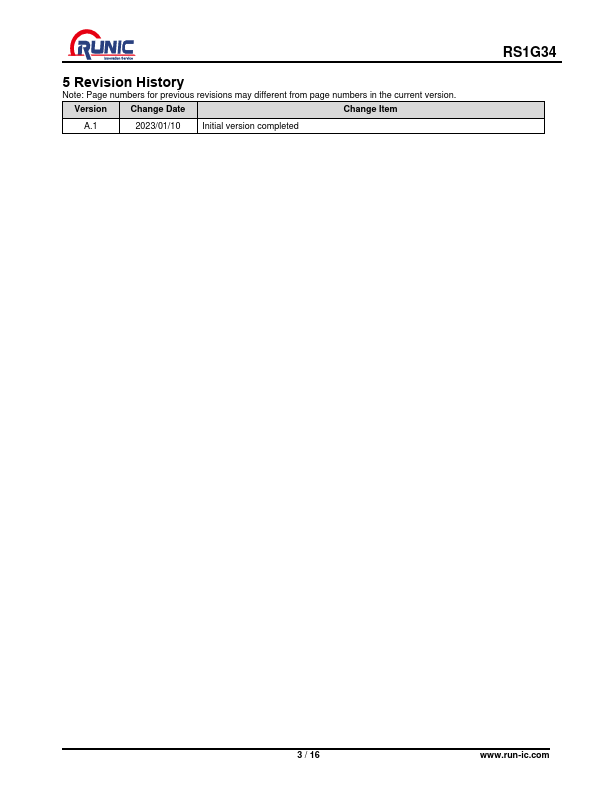

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS1G34
Manufacturer
RUNIC
File Size
357.33 KB
Datasheet
RS1G34-RUNIC.pdf
Description
Single Buffer Gate

Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Partial-Power-Down Mode Operation

Applications

* AC Receiver
* Blu-ray Players and Home Theaters
* Desktops or Notebook PCs
* Digital Video Cameras (DVC)
* Mobile Phones
* Personal Navigation Device (GPS)
