RS1G373 Single D-Type Latch

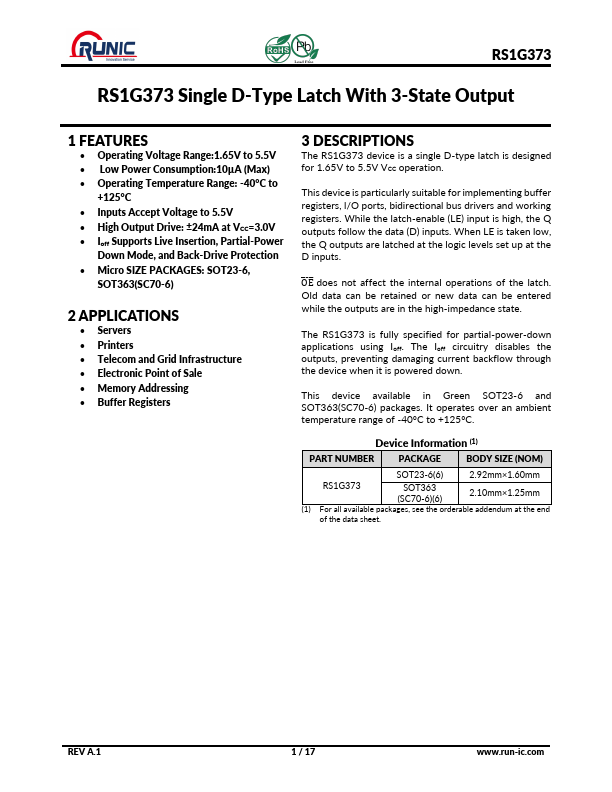

📥 Download Datasheet Datasheet Preview Page 1

Description

RS1G373 RS1G373 Single D-Type Latch With 3-State Output 1 .
The RS1G373 device is a single D-type latch is designed for 1.

📥 Download Datasheet

Preview of RS1G373 PDF

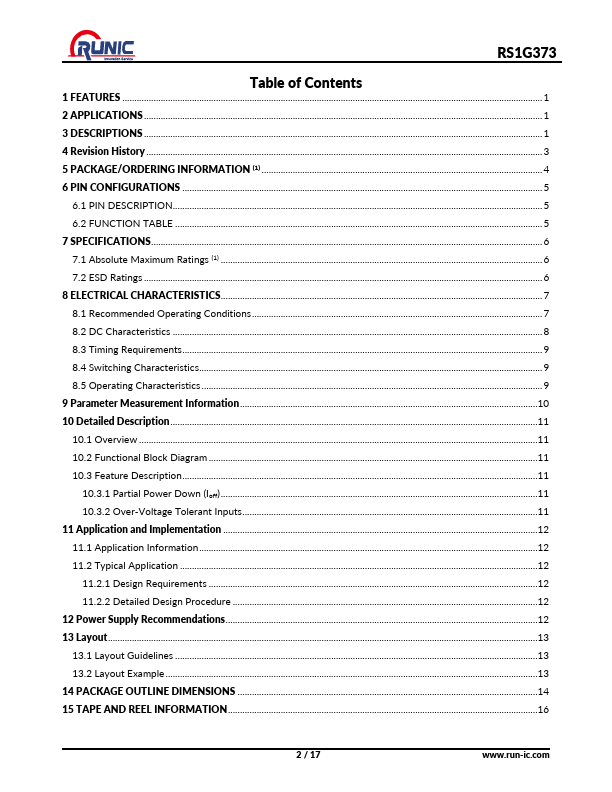

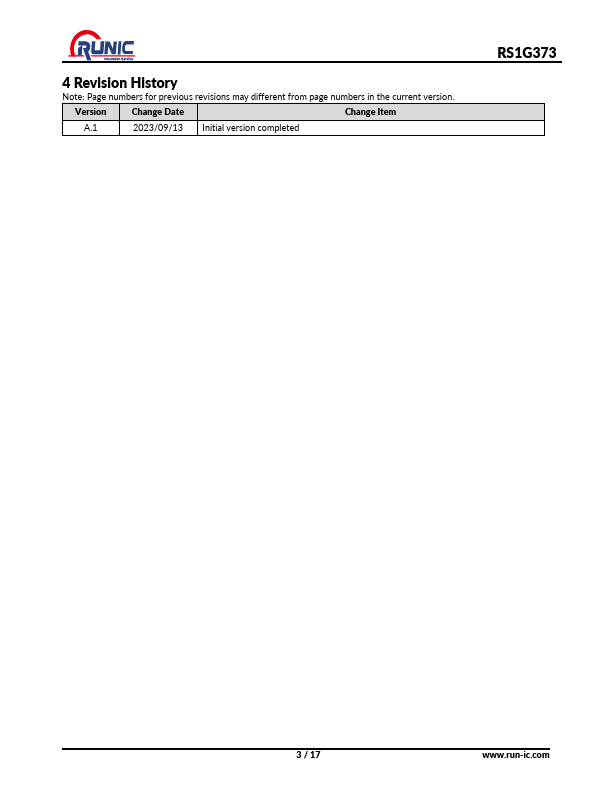

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS1G373
Manufacturer
RUNIC
File Size
610.04 KB
Datasheet
RS1G373-RUNIC.pdf
Description
Single D-Type Latch

Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:10µ A (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Live Insertion, Partial-Power Down Mode, a

Applications

* Servers
* Printers
* Telecom and Grid Infrastructure
* Electronic Point of Sale
* Memory Addressing
