RS3236 - 500mA RF Linear Regulators

Product Overview

RUNIC

📥 Download Datasheet

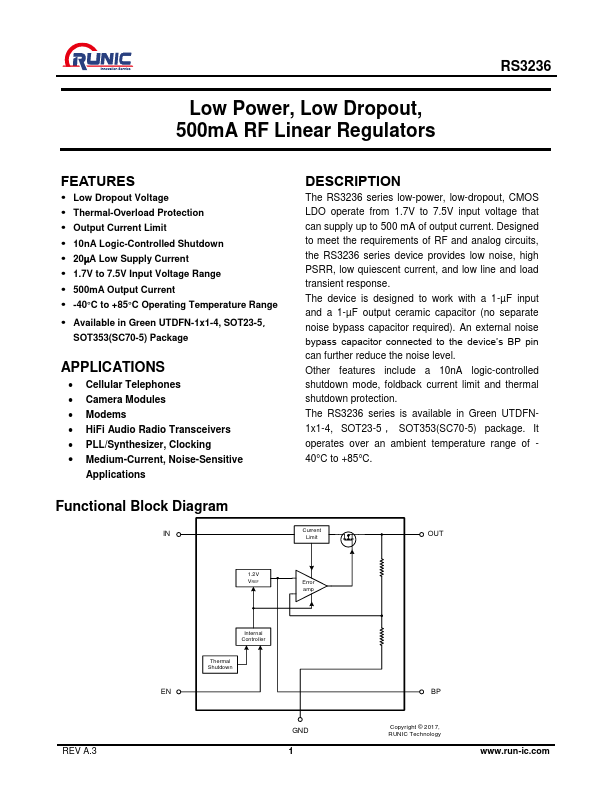

RS3236 500mA RF Linear Regulators by RUNIC - Datasheet Preview — Datasheet preview – RS3236

Datasheet Details

Part number	RS3236
Manufacturer	RUNIC
File Size	446.69 KB
Description	500mA RF Linear Regulators
Datasheet	RS3236 Datasheet

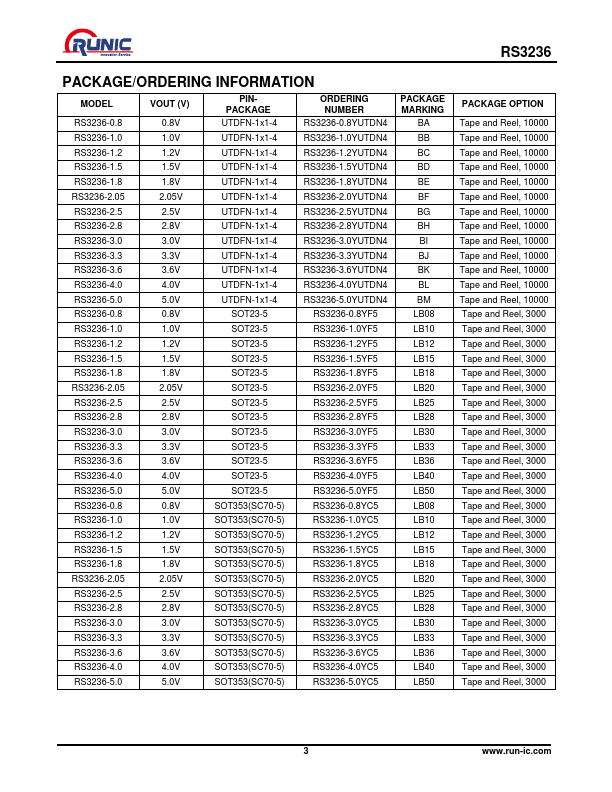

Additional preview pages of the RS3236 datasheet.

Product details

Description

The RS3236 series low-power, low-dropout, CMOS LDO operate from 1.7V to 7.5V input voltage that can supply up to 500 mA of output current.

Features

Low Dropout Voltage.
Thermal-Overload Protection.
Output Current Limit.
10nA Logic-Controlled Shutdown.
20μA Low Supply Current.
1.7V to 7.5V Input Voltage Range.
500mA Output Current.
-40°C to +85°C Operating Temperature Range.
Available in Green UTDFN-1x1-4, SOT23-5， SOT353(SC70-5) Package.
