RS8513, RS8511 - Rail-to-Rail I/O CMOS Operational Amplifiers

RUNIC

RS8513 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS8513, RS8511. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RS8513, RS8511
Manufacturer	RUNIC
File Size	592.75 KB
Description	Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet	RS8511-RUNIC.pdf
Note	This datasheet PDF includes multiple part numbers: RS8513, RS8511. Please refer to the document for exact specifications by model.

RS8513 Product details

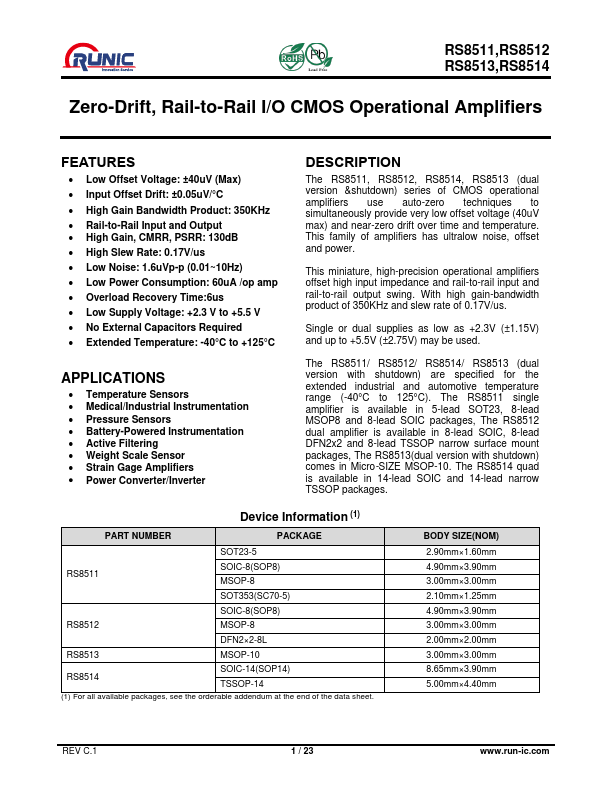

Description

The RS8511, RS8512, RS8514, RS8513 (dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40uV max) and near-zero drift over time and temperature.

Features

Low Offset Voltage: ±40uV (Max).
Input Offset Drift: ±0.05uV/°C.
High Gain Bandwidth Product: 350KHz.
Rail-to-Rail Input and Output.
High Gain, CMRR, PSRR: 130dB.
High Slew Rate: 0.17V/us.
Low Noise: 1.6uVp-p (0.01~10Hz).
Low Power Consumption: 60uA /op amp.
Overload Recovery Time:6us.
Low Supply Voltage: +2.3 V to +5.5 V.
No External Capacitors Required.
Extended Temperature: -40°C to +1.
