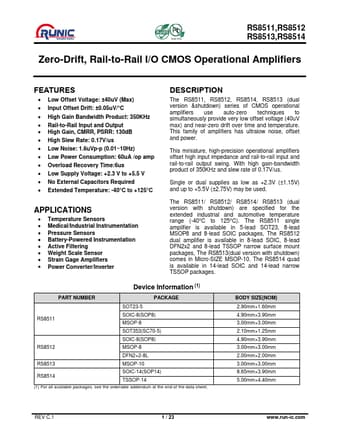

RS8514, RS8511 Rail-to-Rail I/O CMOS Operational Amplifiers

RUNIC

Description

RS8511,RS8512 RS8513,RS8514 Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers .
The RS8511, RS8512, RS8514, RS8513 (dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide v.

📥 Download Datasheet

RS8514 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS8514, RS8511. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS8514, RS8511
Manufacturer: RUNIC
File Size: 592.75 KB
Datasheet: RS8511-RUNIC.pdf
Description: Rail-to-Rail I/O CMOS Operational Amplifiers
Note: This datasheet PDF includes multiple part numbers: RS8514, RS8511.
Please refer to the document for exact specifications by model.

Features

* Low Offset Voltage: ±40uV (Max)
* Input Offset Drift: ±0.05uV/°C
* High Gain Bandwidth Product: 350KHz
* Rail-to-Rail Input and Output
* High Gain, CMRR, PSRR: 130dB
* High Slew Rate: 0.17V/us
* Low Noise: 1.6uVp-p (0.01~10Hz)
* Low P

Applications

* Temperature Sensors
* Medical/Industrial Instrumentation
* Pressure Sensors
* Battery-Powered Instrumentation
* Active Filtering
* Weight Scale Sensor
* Strain Gage Amplifiers
