RS8552, RS8551 - Rail-to-Rail I/O CMOS Operational Amplifiers

RUNIC

RS8552 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS8552, RS8551. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RS8552, RS8551
Manufacturer	RUNIC
File Size	1.06 MB
Description	Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet	RS8551-RUNIC.pdf
Note	This datasheet PDF includes multiple part numbers: RS8552, RS8551. Please refer to the document for exact specifications by model.

RS8552 Product details

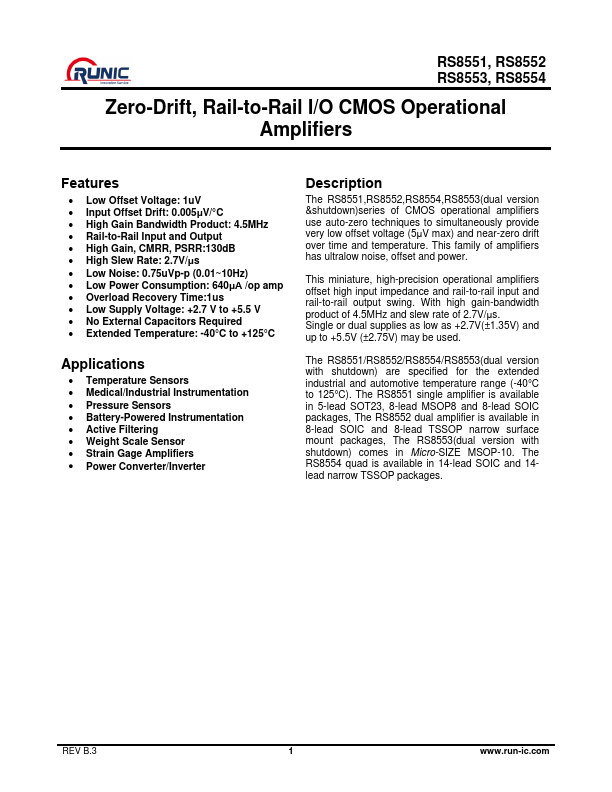

Description

The RS8551,RS8552,RS8554,RS8553(dual version &shutdown)series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5μV max) and near-zero drift over time and temperature.

Features

Low Offset Voltage: 1uV.
Input Offset Drift: 0.005μV/°C.
High Gain Bandwidth Product: 4.5MHz.
Rail-to-Rail Input and Output.
High Gain, CMRR, PSRR:130dB.
High Slew Rate: 2.7V/μs.
Low Noise: 0.75uVp-p (0.01~10Hz).
Low Power Consumption: 640μA /op amp.
Overload Recovery Time:1us.
Low Supply Voltage: +2.7 V to +5.5 V.
No External Capacitors Required.
Extended Temperature: -40°C to +125°C.
