RS8551-Q1 Rail-to-Rail I/O CMOS Operational Amplifiers

RUNIC

Description

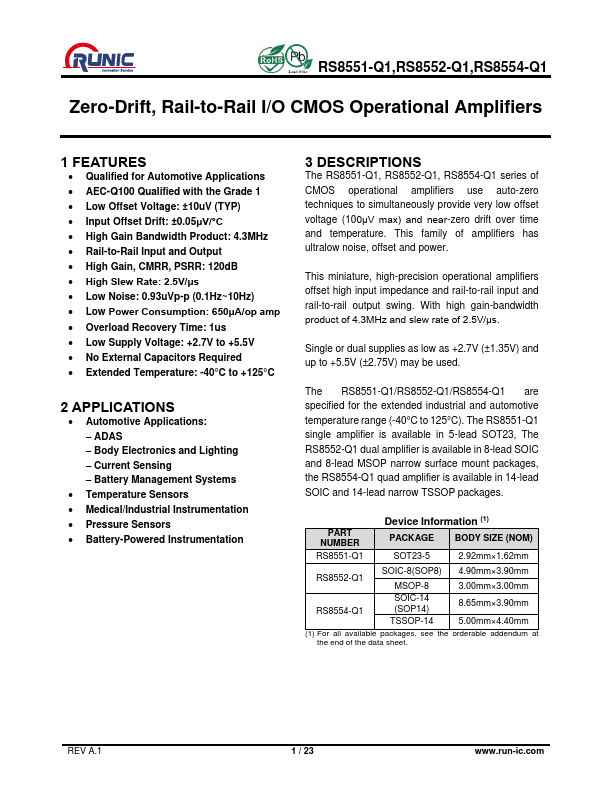

RS8551-Q1,RS8552-Q1,RS8554-Q1 Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers 1 .
The RS8551-Q1, RS8552-Q1, RS8554-Q1 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage.

📥 Download Datasheet

RS8551-Q1 Datasheet Preview — Preview of RS8551-Q1 PDF

Datasheet Specifications

Part number: RS8551-Q1
Manufacturer: RUNIC
File Size: 546.47 KB
Datasheet: RS8551-Q1-RUNIC.pdf
Description: Rail-to-Rail I/O CMOS Operational Amplifiers

Applications

* AEC-Q100 Qualified with the Grade 1
* Low Offset Voltage: ±10uV (TYP)
* Input Offset Drift: ±0.05μV/°C
* High Gain Bandwidth Product: 4.3MHz
* Rail-to-Rail Input and Output
* High Gain, CMRR, PSRR: 120dB
* High Slew Rate: 2.5V/μs
* Lo
