RS8553, RS8551, Rail-to-Rail I/O CMOS Operational Amplifiers

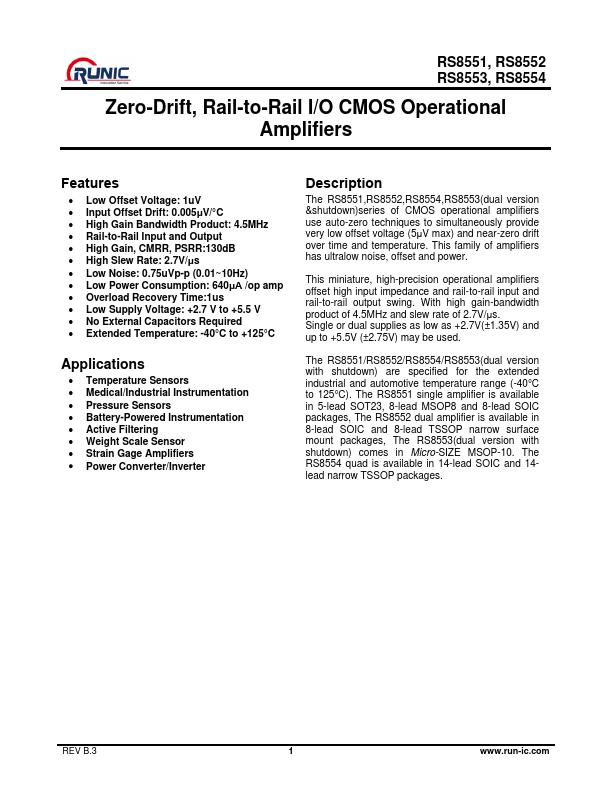

RS8551, RS8552 RS8553, RS8554 Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers .
The RS8551,RS8552,RS8554,RS8553(dual version &shutdown)series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very l.

datasheet Preview Page 1 from Datasheet4u.com

RS8551-RUNIC.pdf

RS8553 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS8553, RS8551. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS8553, RS8551

Manufacturer:

RUNIC

File Size:

1.06 MB

Description:

Rail-to-Rail I/O CMOS Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: RS8553, RS8551.
Please refer to the document for exact specifications by model.

Features

* Low Offset Voltage: 1uV
* Input Offset Drift: 0.005μV/°C
* High Gain Bandwidth Product: 4.5MHz
* Rail-to-Rail Input and Output
* High Gain, CMRR, PSRR:130dB
* High Slew Rate: 2.7V/μs
* Low Noise: 0.75uVp-p (0.01~10Hz)
* Low Power Consumption: 640μA /op amp
* Ove

Applications

* Temperature Sensors
* Medical/Industrial Instrumentation
* Pressure Sensors
* Battery-Powered Instrumentation
* Active Filtering
* Weight Scale Sensor
* Strain Gage Amplifiers
