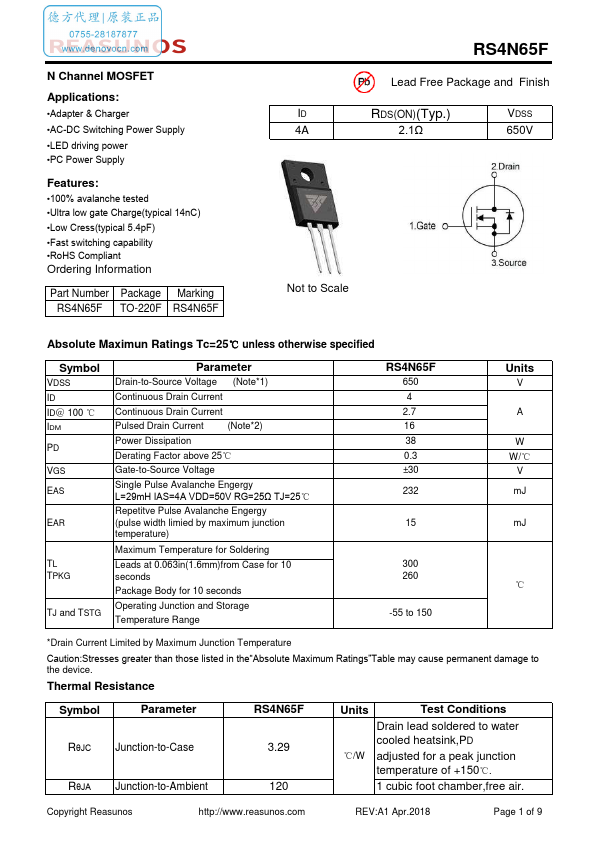

RS4N65F - N-Channel MOSFET

Datasheet Details

100% avalanche tested.
Ultra low gate Charge(typical 14nC).
Low Cress(typical 5.4pF).
Fast switching capability.
RoHS Compliant Ordering Information Part Number Package Marking RS4N65F TO-220F RS4N65F RS4N65F Lead Free Package and Finish ID RDS(ON)(Typ. ) VDSS 4A 2.1Ω 650V Not to Scale Absolute Maximun Ratings Tc=25℃ unless otherwise specified Symbol VDSS ID ID＠ 100 ℃ IDM PD VGS EAS EAR TL TPKG TJ and TSTG Parameter Drain-to-Source Voltage (No.
