DB106S, DB101S - SILICON BRIDGE RECTIFIER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB106S, DB101S. Please refer to the document for exact specifications by model.

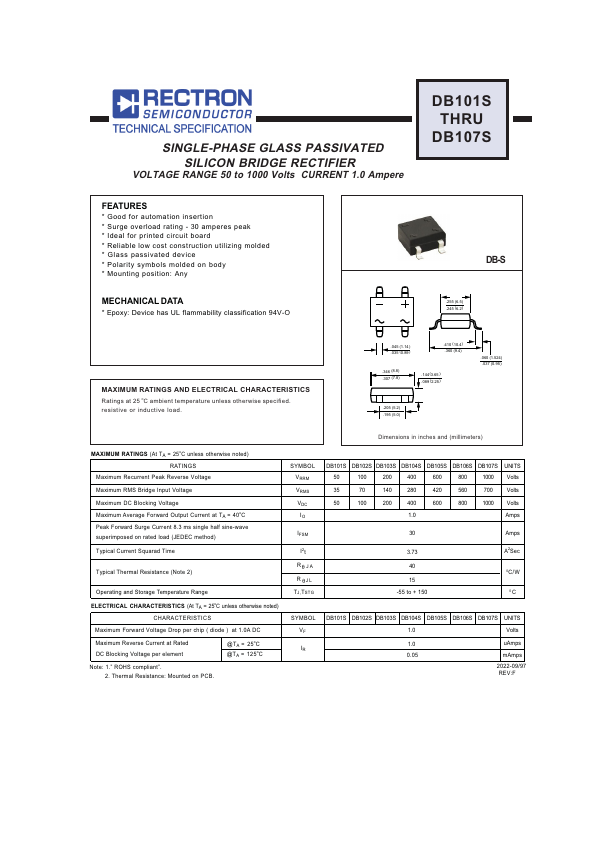

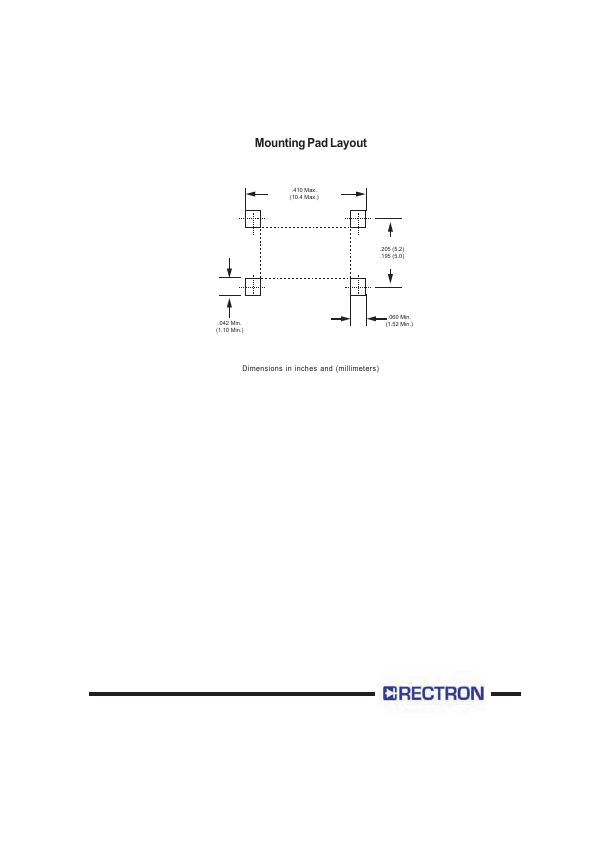

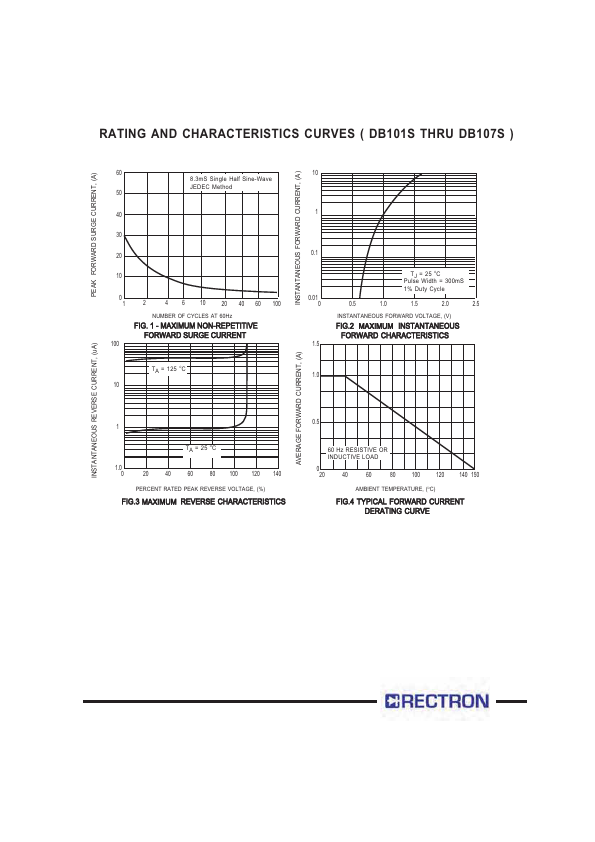

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DB106S, DB101S
Manufacturer Rectron
File Size 642.96 KB
Description SILICON BRIDGE RECTIFIER
Datasheet download datasheet DB101S-Rectron.pdf
Note This datasheet PDF includes multiple part numbers: DB106S, DB101S.
Please refer to the document for exact specifications by model.

DB106S Product details

Description

- + Part No.DB10X Year code (Y: Last digit of year & A:2010, B:2011) ~V Y W W ~ Week code: (WW:01~52) Rectron Logo Voltage-code 1-------50V 5-------600V 2-------100V 6-------800V 3-------200V 7-----1000V 4-------400V PACKAGING OF DIODE AND BRIDGE RECTIFIERS REEL PACK PACKAGE PACKING EA PER CODE REEL EA PER INNER BOX COMPONENT SPACE TAPE SPACE (mm) (mm) REEL DIA (mm) CARTON SIZE EA PER (mm) CARTON GROSS WEIGHT(Kg) DB-S -T/W 1,000 1,000 9.5 52 330 360

Features
