EFM302B, EFM301B, SUPER FAST SILICON RECTIFIER

SURFACE MOUNT GLASS PASSIVATED SUPER FAST SILICON RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 3.0 Amperes EFM301B THRU EFM307B .
Cathode Band 3EX V Y WW Year. code (Y: Last digit of year & A:2010,B:2011……) Part No. -50V 5.

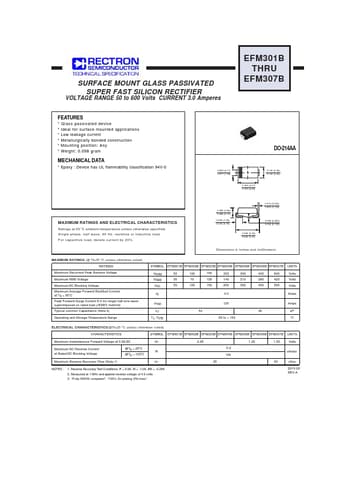

datasheet Preview Page 1 from Datasheet4u.com

EFM301B_Rectron.pdf

EFM302B Datasheet Preview — This datasheet PDF includes multiple part numbers: EFM302B, EFM301B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EFM302B, EFM301B

Manufacturer:

Rectron

File Size:

187.34 KB

Description:

SUPER FAST SILICON RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: EFM302B, EFM301B.
Please refer to the document for exact specifications by model.

Features

* Glass passivated device

Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.098 gram MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 DO-214AA 0.083 (2.11) 0.077 (1.96) 0.180 (4.57) 0.160 (4.06) 0.155 (3.94) 0.130 (3.30) MAXIMUM
