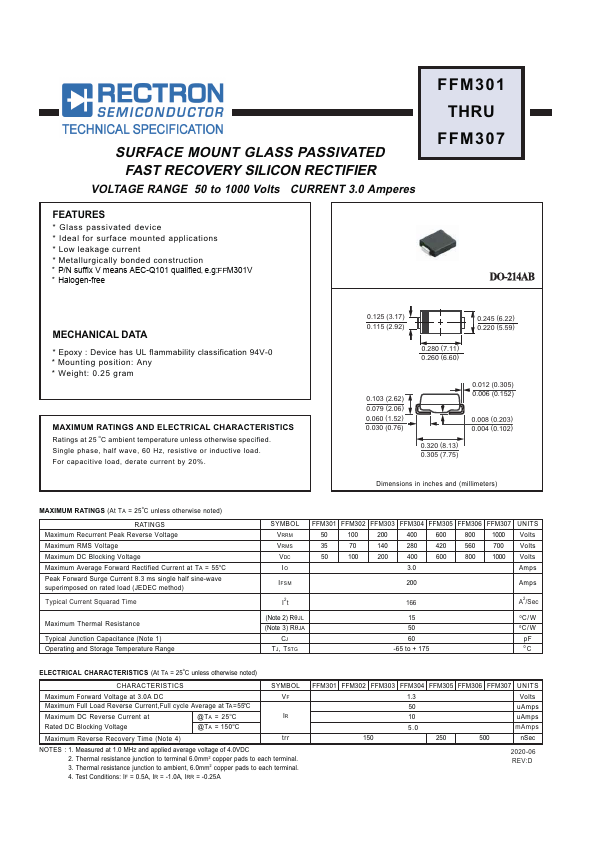

SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Amperes
FEATURES
* Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * P/N suffix V means AEC-Q101 qualified, e.g:FFM301V * Halogen-free
FFM301 THRU
FFM307
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 * Mounting position: Any * Weight: 0.25 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
0.125 (3.17) 0.115 (2.92)
0.280 (7.11) 0.260 (6.60)
0.245 (6.22) 0.220 (5.59)
0.103 (2.62) 0.079 (2.06) 0.060 (1.52) 0.
