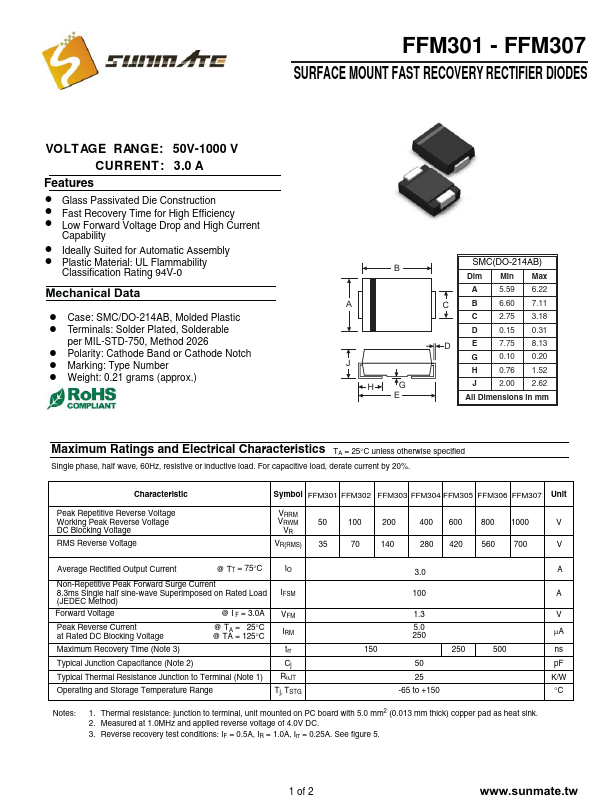

FFM304, FFM301 - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	FFM304, FFM301
Manufacturer	Sunmate
File Size	107.84 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FFM301-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FFM304, FFM301. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC(DO-214AB) Dim Min Max A.
