FFM302B, FFM301B FAST RECOVERY SILICON RECTIFIER

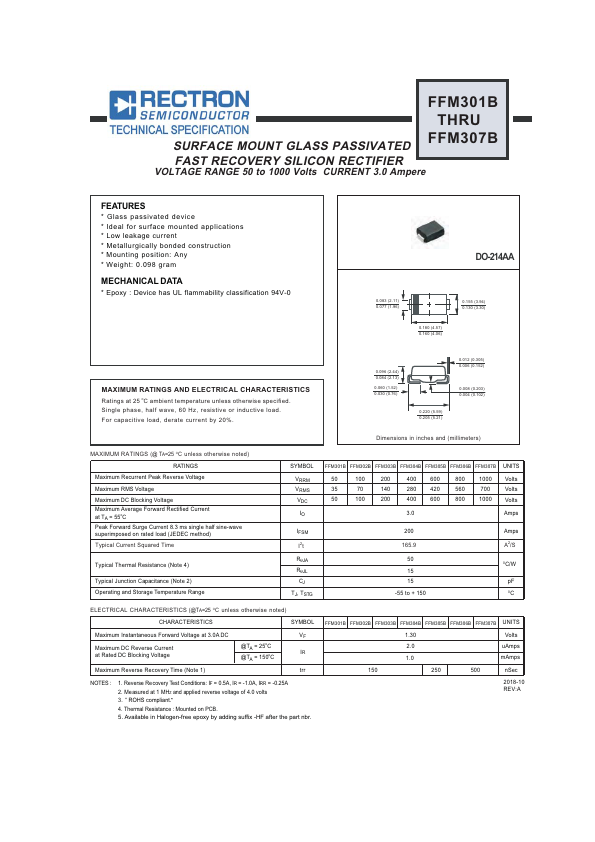

📥 Download Datasheet Datasheet Preview Page 1

Description

FFM301B THRU SURFACE MOUNT GLASS PASSIVATED FFM307B FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere .
Cathode Band 3FX VXXX Year. code: (Y:Last digit of year& A:2010 ,B:2011……) Rectron Logo Part No.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM302B, FFM301B. Please refer to the document for exact specifications by model.

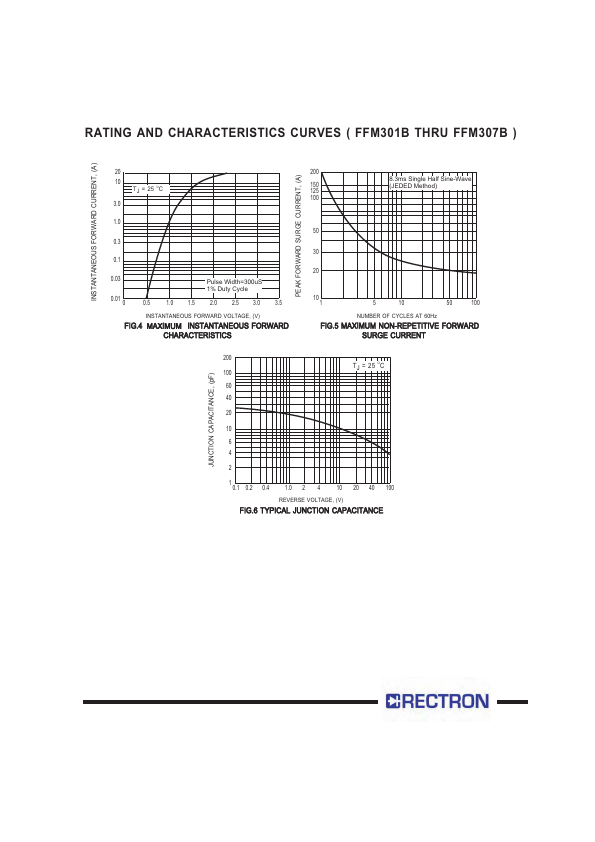

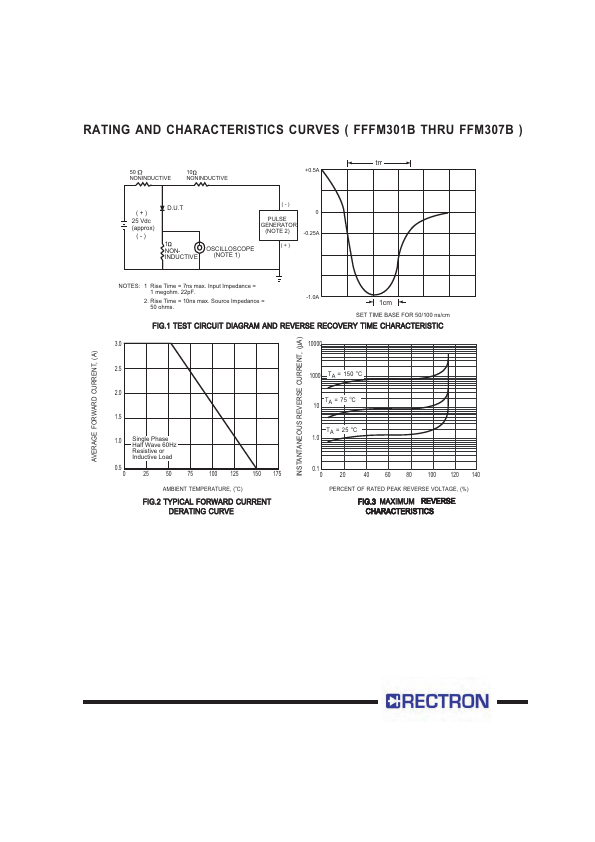

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FFM302B, FFM301B
Manufacturer
Rectron
File Size
163.45 KB
Datasheet
FFM301B-Rectron.pdf
Description
FAST RECOVERY SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FFM302B, FFM301B.
Please refer to the document for exact specifications by model.

Features

* Glass passivated device

Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.098 gram MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 DO-214AA 0.083 (2.11) 0.077 (1.96) 0.180 (4.57) 0.160 (4.06) 0.155 (3.94) 0.130 (3.30) MAXIMUM
