FM180, FM120 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

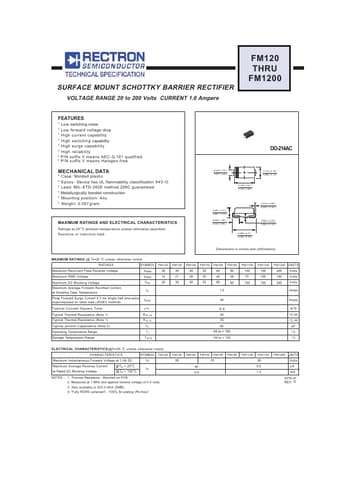

📥 Download Datasheet  Datasheet Preview Page 1

Description

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 200 Volts CURRENT 1.0 Ampere FM120 THRU FM1200 .
SCHOTTKY Cathode Band SX VYWW Year. code (Y: Last digit of year & A:2010,B:2011…….

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FM180, FM120. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FM180, FM120
Manufacturer
Rectron
File Size
88.30 KB
Datasheet
FM120-Rectron.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FM180, FM120.
Please refer to the document for exact specifications by model.

Features

* Low switching noise
* Low forward voltage drop
* High current capability
* High switching capability
* High surge capabitity
* High reliability
* P/N suffix V means AEC-Q 101 qualified
* P/N suffix V means Halogen-free MECHANICAL DATA
* Case: Molded plastic
