MP158W, MP1505W - SILICON BRIDGE RECTIFIER

MP158W Description

M P 1 5 0 5W THRU SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes M P 1 5 1 0W .
AC + Part No. code: (Y:Last digit of year) Week. code: (WW:01~52) Voltage-code 05.

MP158W Features

* Superior thermal desing
* 300 amperes surge rating //
* 1/4 universal faston terminal
* Hole thru for # 10 screw MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O .043 (1.1) .039 (1.0) MP-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP158W, MP1505W. Please refer to the document for exact specifications by model.

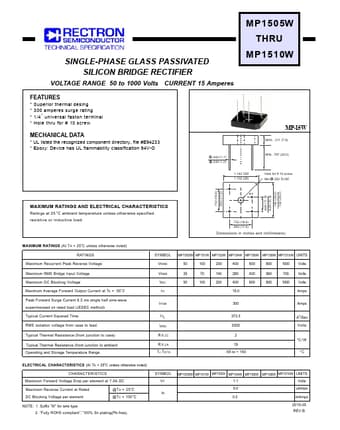

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP158W, MP1505W
Manufacturer
Rectron
File Size
330.07 KB
Datasheet
MP1505W-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MP158W, MP1505W.
Please refer to the document for exact specifications by model.
