* Suitable for direct mounting High forward transfer admittance Excellent frequency response Enhancement-mode Outline RENESAS Package code: PRSS0004AC-A (Package name: TO-220AB) D G 1. Gate 2. Source (Flange) 3. Drain S 1 2 3 Rev.2.00 Sep 07, 2005 page 1 of
2SK216
Renesas ↗ Technology
98.09 KB
N-channel mosfet.

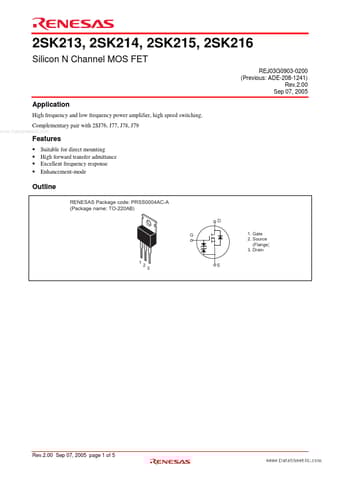

2SK213, 2SK214, 2SK215, 2SK216
Silicon N Channel MOS FET
REJ03G0903-0200 (Previous: ADE-208-1241) Rev.2.00 Sep 07, 2005
Application
High frequency an.
