HN58X2504I - EEPROM

Product Overview

Renesas Technology

📥 Download Datasheet

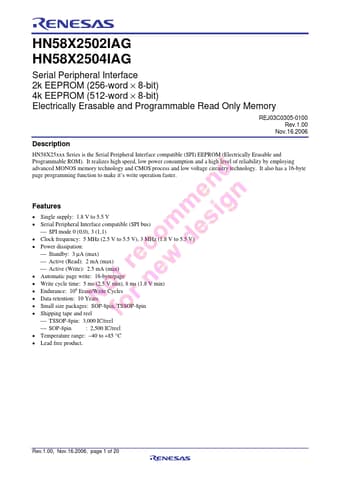

HN58X2504I EEPROM by Renesas Technology - Datasheet Preview — Datasheet preview – HN58X2504I

Datasheet Details

Part number	HN58X2504I
Manufacturer	Renesas Technology
File Size	251.59 KB
Description	EEPROM
Datasheet	HN58X2504I Datasheet
Note	This datasheet PDF includes multiple part numbers: HN58X2504I, HN58X2502I. Please refer to the document for exact specifications by model.
Additional preview pages of the HN58X2504I datasheet.

Product details

Description

HN58X25xxx Series is the Serial Peripheral Interface compatible (SPI) EEPROM (Electrically Erasable and Programmable ROM).

Features

Single supply: 1.8 V to 5.5 V.
Serial Peripheral Interface compatible (SPI bus)  SPI mode 0 (0,0), 3 (1,1).
Clock frequency: 5 MHz (2.5 V to 5.5 V), 3 MHz (1.8 V to 5.5 V).
Power dissipation:  Standby: 3 µA (max)  Active (Read): 2 mA (max)  Active (Write): 2.5 mA (max).
Automatic page write: 16-byte/page.
Write cycle time: 5 ms (2.5 V min), 8 ms (1.8 V min).
Endurance: 106 Erase/Write Cycles.
Data retention: 10 Years.
