HN58X2402 - EEPROM

Product Overview

Hitachi Semiconductor

Part number	HN58X2402
Manufacturer	Hitachi Semiconductor
File Size	114.19 KB
Description	EEPROM
Datasheet	HN58X2402 Datasheet

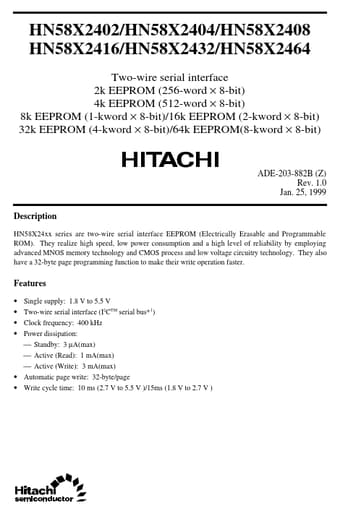

Additional preview pages of the HN58X2402 datasheet.

HN58X24xx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

Single supply: 1.8 V to 5.5 V Two-wire serial interface (I2CTM serial bus.
1) Clock frequency: 400 kHz Power dissipation:  Standby: 3 µA(max)  Active (Read): 1 mA(max)  Active (Write): 3 mA(max).
Automatic page write: 32-byte/page.
Write cycle time: 10 ms (2.7 V to 5.5 V )/15ms (1.8 V to 2.7 V ).
HN58X2402/58X2404/58X2408/58X2416/58X2432/58X2464 Features (cont. ).
Endurance: 10 5 Cycles (Page write mode).
Data rete.
