HN58X2408, HN58X2402 Datasheet - Hitachi Semiconductor

HN58X2408 EEPROM

HN58X24xx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). They realize high speed, low power consumption and a high level of reliability by employing advanced MNOS memory technology and CMOS process and low voltage circuitry technology. They also have a 32-b.

HN58X2408 Features

* Single supply: 1.8 V to 5.5 V Two-wire serial interface (I2CTM serial bus

* 1) Clock frequency: 400 kHz Power dissipation:  Standby: 3 µA(max)  Active (Read): 1 mA(max)  Active (Write): 3 mA(max)

* Automatic page write: 32-byte/page

* Write cycle time: 10 ms (2.7 V to 5.5 V )/1

HN58X2402_HitachiSemiconductor.pdf

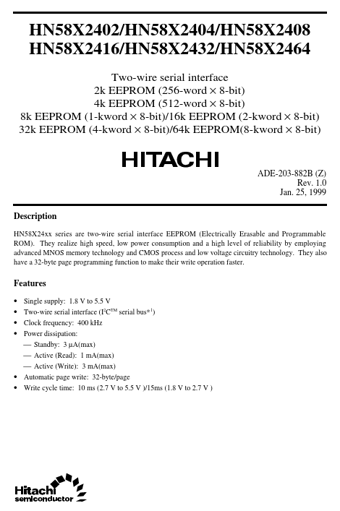

HN58X2408 Datasheet Preview — This datasheet PDF includes multiple part numbers: HN58X2408, HN58X2402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HN58X2408, HN58X2402

Manufacturer:

Hitachi Semiconductor

File Size:

114.19 KB

Description:

Eeprom.

Note:

This datasheet PDF includes multiple part numbers: HN58X2408, HN58X2402.
Please refer to the document for exact specifications by model.
