HN58X2508I - EEPROM

Product Overview

Renesas Technology

Part number	HN58X2508I
Manufacturer	Renesas Technology
File Size	243.84 KB
Description	EEPROM
Datasheet	HN58X2508I Datasheet

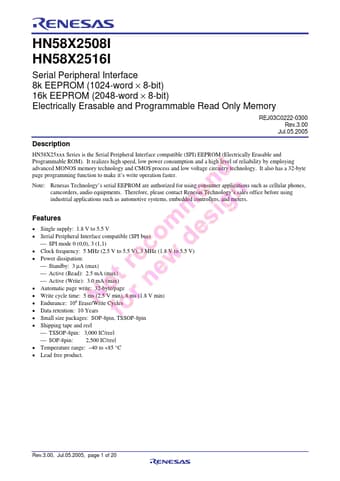

Additional preview pages of the HN58X2508I datasheet.

HN58X25xxx Series is the Serial Peripheral Interface compatible (SPI) EEPROM (Electrically Erasable and Programmable ROM).

Single supply: 1.8 V to 5.5 V.
Serial Peripheral Interface compatible (SPI bus)  SPI mode 0 (0,0), 3 (1,1).
Clock frequency: 5 MHz (2.5 V to 5.5 V), 3 MHz (1.8 V to 5.5 V).
Power dissipation:  Standby: 3 µA (max)  Active (Read): 2.5 mA (max)  Active (Write): 3.0 mA (max).
Automatic page write: 32-byte/page.
Write cycle time: 5 ms (2.5 V min), 8 ms (1.8 V min).
Endurance: 106 Erase/Write Cycles.
Data retention: 10 Years.
