HN58X2408I - Two-wire serial interface 8k EEPROM (1-kword x 8-bit)

Product Overview

Hitachi Semiconductor

Part number	HN58X2408I
Manufacturer	Hitachi Semiconductor
File Size	71.02 KB
Description	Two-wire serial interface 8k EEPROM (1-kword x 8-bit)
Datasheet	HN58X2408I Datasheet

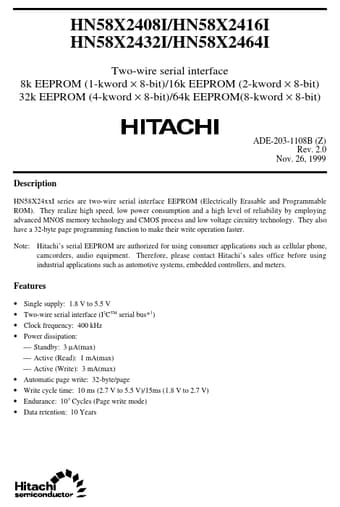

Additional preview pages of the HN58X2408I datasheet.

HN58X24xxI series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

Single supply: 1.8 V to 5.5 V Two-wire serial interface (I2CTM serial bus.
1) Clock frequency: 400 kHz Power dissipation:  Standby: 3 µA(max)  Active (Read): 1 mA(max)  Active (Write): 3 mA(max) Automatic page write: 32-byte/page Write cycle time: 10 ms (2.7 V to 5.5 V)/15ms (1.8 V to 2.7 V) Endurance: 10 5 Cycles (Page write mode) Data retention: 10 Years.
HN58X2408I/HN58X2416I/HN58X2432I/HN58X2464I.
