HVC145 Silicon Epitaxial Planar Pin Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

www.DataSheet4U.com HVC145 Silicon Epitaxial Planar Pin Diode for Antenna Switching REJ03G0423-0300 (Previous: ADE-208-1500B) Rev.3.00 Dec 07, 2004 .

📥 Download Datasheet

Preview of HVC145 PDF

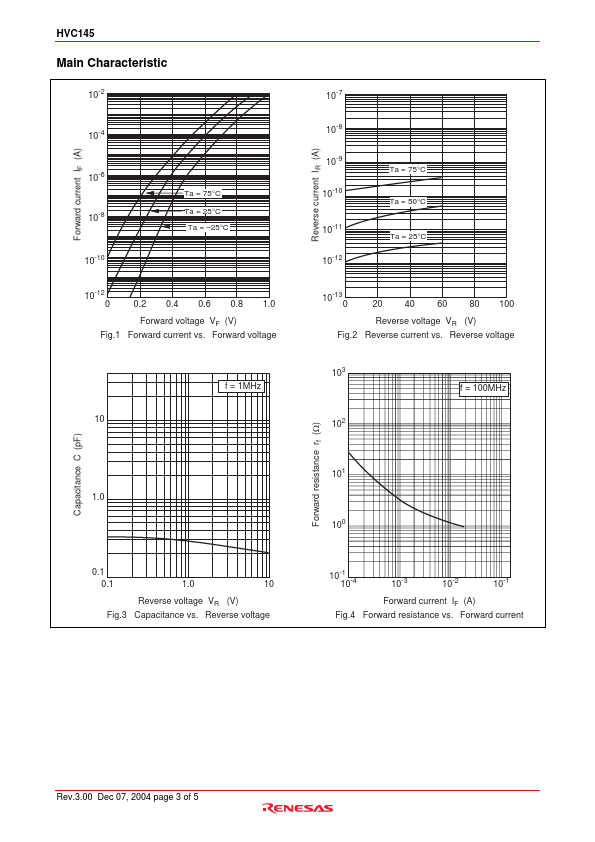

datasheet Preview Page 2 datasheet Preview Page 3

Features

* An optimal solution for antenna switching in mobile phones. Low capacitance. (C = 0.45 pF max) Low forward resistance. (rf = 1.8 Ω max) Ultra small Flat Lead Package (UFP) is suitable for surface mount design. Ordering Information Type No. HVC145 Laser Mark T
