M37150M8, M37150EFFP Datasheet - Renesas Technology

M37150M8 (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER

The M37150M6/M8/MA/MC/MF-XXXFP and M37150EFFP are single-chip microcomputers designed with CMOS silicon gate technology. They have an OSD, data slicer, and I2C-BUS interface, making them perfect for TV channel selection systems with a closed caption decoder. The M37150EFFP has a built-in PROM that c.

M37150M8 Features

* Number of basic instructions 71

* Memory size ROM 24K bytes (M37150M6-XXXFP) 32K bytes (M37150M8-XXXFP) 40K bytes (M37150MA-XXXFP) 48K bytes (M37150MC-XXXFP) 60K bytes (M37150MF-XXXFP, M37150EFFP) RAM 1024 bytes (M37150M6-XXXFP) 1152 bytes (M37150M8-XXXFP) 1472 bytes (M37150MA-XXXFP, M3

M37150EFFP_RenesasTechnology.pdf

This datasheet PDF includes multiple part numbers: M37150M8, M37150EFFP. Please refer to the document for exact specifications by model.

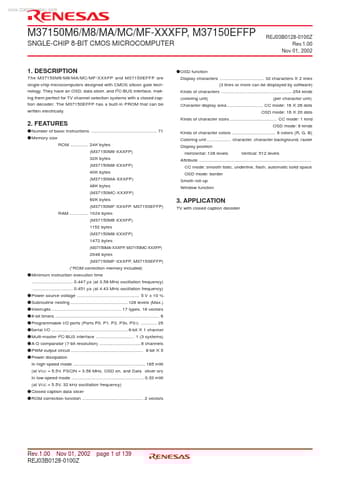

M37150M8 Datasheet Preview Page 2 M37150M8 Datasheet Preview Page 3

Datasheet Details

Part number:

M37150M8, M37150EFFP

Manufacturer:

Renesas ↗ Technology

File Size:

1.26 MB

Description:

(m37150xx) sngle-chip 8-bit cmos microcomputer.

Note:

This datasheet PDF includes multiple part numbers: M37150M8, M37150EFFP.
Please refer to the document for exact specifications by model.
