M37150MC - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Product Overview

Renesas Technology

Part number	M37150MC
Manufacturer	Renesas Technology
File Size	1.26 MB
Description	(M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M37150MC Datasheet
Note	This datasheet PDF includes multiple part numbers: M37150MC, M37150EFFP. Please refer to the document for exact specifications by model.

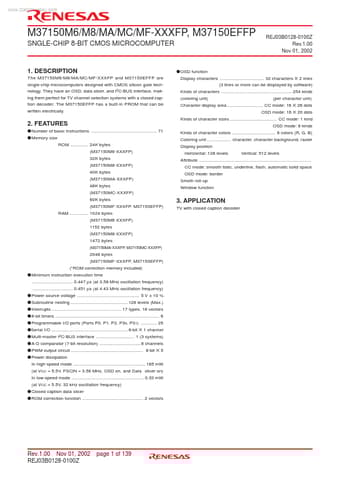

Additional preview pages of the M37150MC datasheet.

The M37150M6/M8/MA/MC/MF-XXXFP and M37150EFFP are single-chip microcomputers designed with CMOS silicon gate technology.

Number of basic instructions 71.
Memory size ROM 24K bytes (M37150M6-XXXFP) 32K bytes (M37150M8-XXXFP) 40K bytes (M37150MA-XXXFP) 48K bytes (M37150MC-XXXFP) 60K bytes (M37150MF-XXXFP, M37150EFFP) RAM 1024 bytes (M37150M6-XXXFP) 1152 bytes (M37150M8-XXXFP) 1472 bytes (M37150MA-XXXFP, M37150MC-XXXFP) 2048 bytes (M37150MF-XXXFP, M37150EFFP) (.
ROM correction memory included).
Minimum instruction execution time 0.447 µs (at 3.58 MHz oscillation frequency) 0.451 µs (at 4.43 MH.
