M51132L, M51132 Datasheet - Renesas Technology

M51132L 2ch Electronic Volume Balance

The M51132 is a VCA (Voltage Controlled Amplifier) IC developed as an electronic volume control for audio-visual equipment. The IC is used to process small analog signals at the stage before power amplifier. Right/left independent volume control or right/left simultaneous volume control can be selec.

M51132L Features

* Two control modes can be selected. (Left/right independent volume control mode or left/right simultaneous volume + balance control mode.)

* Pass through switch is included to output the input signal as it is, irrespective of the volume/balance control voltages.

* Shock nois

M51132_RenesasTechnology.pdf

This datasheet PDF includes multiple part numbers: M51132L, M51132. Please refer to the document for exact specifications by model.

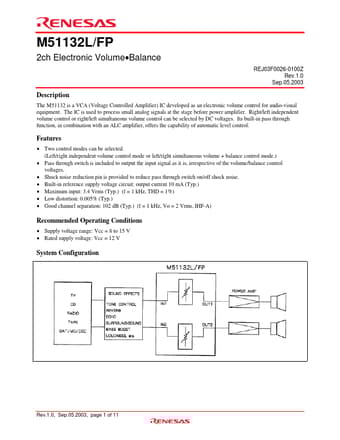

M51132L Datasheet Preview Page 2 M51132L Datasheet Preview Page 3

Datasheet Details

Part number:

M51132L, M51132

Manufacturer:

Renesas ↗ Technology

File Size:

342.26 KB

Description:

2ch electronic volume balance.

Note:

This datasheet PDF includes multiple part numbers: M51132L, M51132.
Please refer to the document for exact specifications by model.
