1S2075K, 1S2075 Silicon Epitaxial Planar Diode

Renesas

Description

1S2075(K) Silicon Epitaxial Planar Diode for High Speed Switching REJ03G0558-0400 (Previous: ADE-208-144C) Rev.4.00 Mar 16, 2005 .

📥 Download Datasheet

1S2075K Datasheet Preview — This datasheet PDF includes multiple part numbers: 1S2075K, 1S2075. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1S2075K, 1S2075
Manufacturer: Renesas ↗
File Size: 233.91 KB
Datasheet: 1S2075-Renesas.pdf
Description: Silicon Epitaxial Planar Diode
Note: This datasheet PDF includes multiple part numbers: 1S2075K, 1S2075.
Please refer to the document for exact specifications by model.

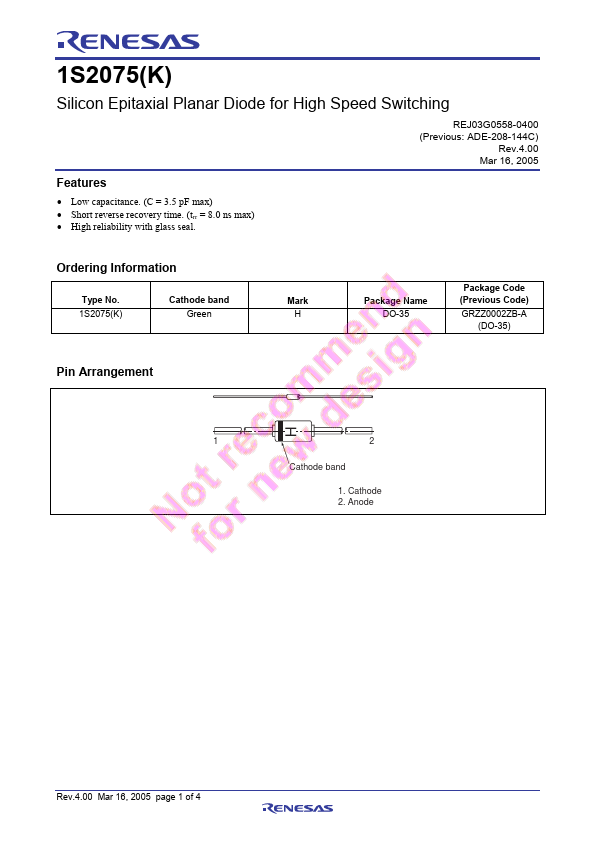

Features

* Low capacitance. (C = 3.5 pF max)
* Short reverse recovery time. (trr = 8.0 ns max)
* High reliability with glass seal. Ordering Information Type No. 1S2075(K) Cathode band Green Mark H Package Name DO-35 Package Code (Previous Code) GRZZ0002ZB-A (DO-35) Pin Arrangem
