2SD1978 Datasheet - Renesas

2SD1978 NPN Transistor

2SD1978 Silicon NPN Epitaxial, Darlington Application Low frequency power amplifier Complementary pair with 2SB1387 Outline RENESAS Package code: PRSS0003DC-A (Package name: TO-92 Mod) 3 3 2 1 REJ03G0799-0200 (Previous ADE-208-1162) Rev.2.00 Aug.10.2005 2 2 kΩ (Typ) 0.5 kΩ (Typ) 1 1. Emitter 2. Collector 3. Base ID Absolute Maximum Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collect.

2SD1978-Renesas.pdf

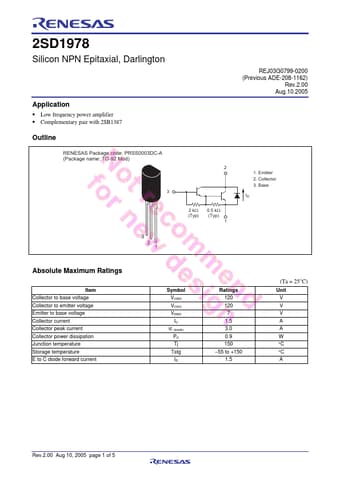

Preview of 2SD1978 PDF
2SD1978 Datasheet Preview Page 2 2SD1978 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1978

Manufacturer:

Renesas ↗

File Size:

150.85 KB

Description:

Npn transistor.
