2SD1975 - Silicon NPN Transistor

2SD1975 Description

Power Transistors 2SD1975, 2SD1975A Silicon NPN triple diffusion planar type For high power amplification Complementary to 2SB1317 and 2SB1317A 20.0±.

2SD1975 Features

* q q q q Satisfactory foward current transfer ratio hFE collector current IC characteristics Wide area of safe operation (ASO) High transition frequency fT Optimum for the output stage of a HiFi audio amplifier (TC=25˚C) Ratings 180 200 180 200 5 25 15 150 3.5 150
* 55 to +150 Unit V 26.0±0.

📥 Download Datasheet

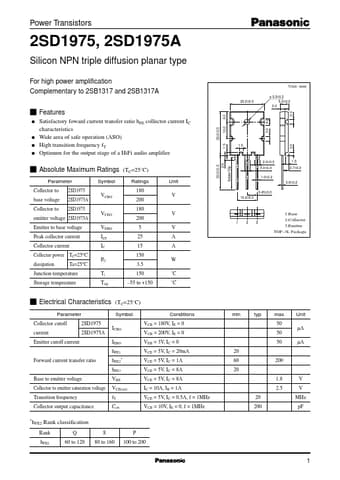

Preview of 2SD1975 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1975
Manufacturer
Panasonic Semiconductor
File Size
54.98 KB
Datasheet
2SD1975_PanasonicSemiconductor.pdf
Description
Silicon NPN Transistor
