2SK1070 Datasheet (Renesas) - Silicon N-Channel Junction FET

2SK1070, Silicon N-Channel Junction FET

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples.

You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment.

Renesa

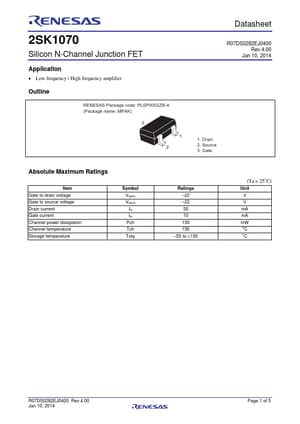

2SK1070 Silicon N-Channel Junction FET Preliminary Datasheet R07DS0282EJ0400 Rev.4.00 Jan 10, 2014 Application Low frequency / High frequency amplifier Outline RENESAS Package code: PLSP0003ZB-A (Package name: MPAK) 3 1 2 1.

Drain 2.

Source 3.

Gate Absolute Maximum Ratings Item Gate to drain voltage Gate to source voltage Drain current Gate current Channel power dissipation Channel temperature Storage temperature Symbol VGDO VGSO ID IG Pch Tch Tstg Ratings 22

2SK1070 Features

* distributor of Renesas Electronics products, who distributes, disposes of, or otherwise places the product with a third party, to notify such third party in advance of the contents and condi
