2SK1007 - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

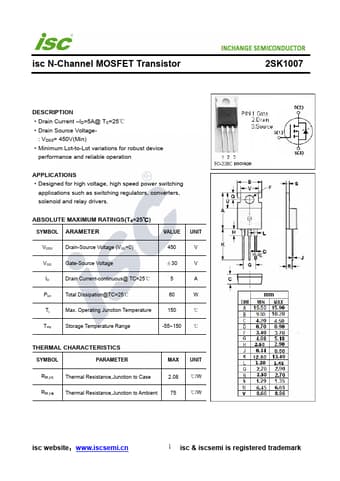

Datasheet preview – 2SK1007

Datasheet Details

Part number 2SK1007
Manufacturer Inchange Semiconductor
File Size 201.25 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1007 Datasheet
Additional preview pages of the 2SK1007 datasheet.

Product details

Description

Drain Current ID=5A@ TC=25℃ Drain Source Voltage- : VDSS= 450V(Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 450 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous
