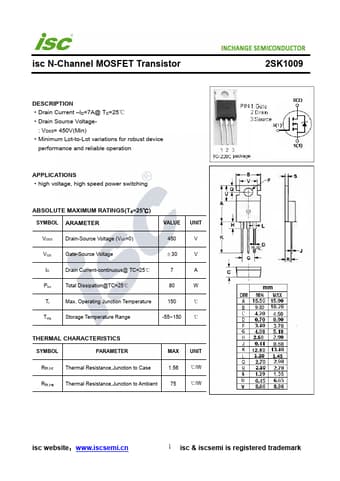

2SK1009 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK1009

Manufacturer:

Inchange Semiconductor

File Size:

200.32kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Drain Current   –ID=7A@ TC=25℃

Drain Source Voltage- : VDSS= 450V(Min)

Minimum Lot-to-Lot va

2SK1009 Application

• Applications
• high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Vol
