2SK1008 - N-Channel MOSFET

Product Overview

📥 Download Datasheet

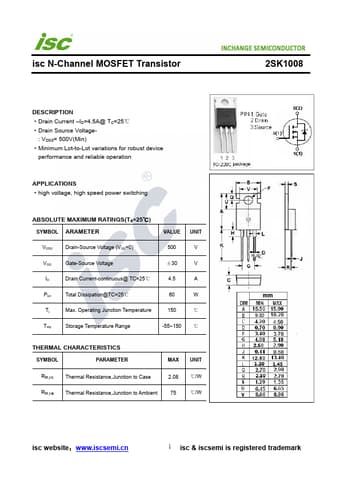

Datasheet preview – 2SK1008

Datasheet Details

Part number 2SK1008
Manufacturer INCHANGE
File Size 196.93 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK1008 Datasheet
Additional preview pages of the 2SK1008 datasheet.

Product details

Description

Drain Current ID=4.5A@ TC=25℃ Drain Source Voltage- : VDSS= 500V(Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 4.5 A Ptot Total Dissipation@TC=25℃ 60 W Tj Max.Operating Junction Temperatu
