2SK1105 - N-Channel MOSFET

Product Overview

📥 Download Datasheet

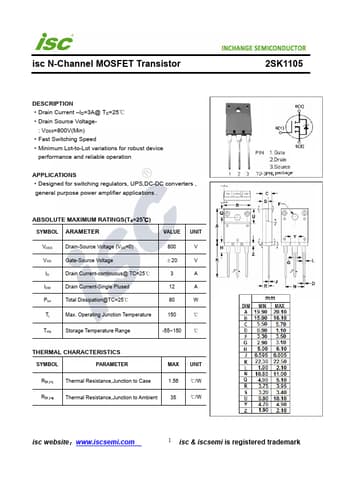

Datasheet preview – 2SK1105

Datasheet Details

Part number 2SK1105
Manufacturer INCHANGE
File Size 229.67 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK1105 Datasheet
Additional preview pages of the 2SK1105 datasheet.

Product details

Description

Drain Current ID=3A@ TC=25℃ Drain Source Voltage- : VDSS=800V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulators, UPS,DC-DC converters , general purpose power amplifier applications .ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 800 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃
