2SK3435-S, 2SK3435, N-CHANNEL POWER MOSFET

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3435 SWITCHING N-CHANNEL POWER MOS FET .
The 2SK3435 is N-channel MOS Field Effect Transistor designed for high current switching applications. Super low on-state resistanc.

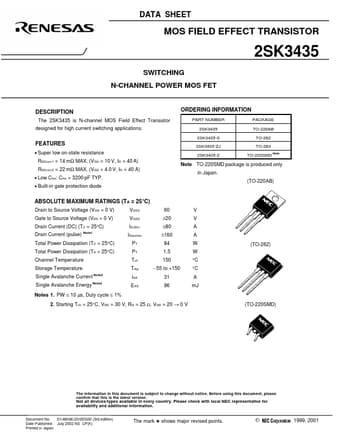

datasheet Preview Page 1 from Datasheet4u.com

2SK3435-Renesas.pdf

2SK3435-S Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SK3435-S, 2SK3435. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SK3435-S, 2SK3435

Manufacturer:

Renesas ↗

File Size:

129.81 KB

Description:

N-CHANNEL POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: 2SK3435-S, 2SK3435.
Please refer to the document for exact specifications by model.

Features

* Super low on-state resistance RDS(on)1 = 14 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 22 mΩ MAX. (VGS = 4.0 V, ID = 40 A)
* Low Ciss: Ciss = 3200 pF TYP.
* Built-in gate protection diode ORDERING INFORMATION PART NUMBER PACKAGE 2SK3435 TO-220AB 2SK3435-S TO-262 2SK
