2SK3136 - Silicon N-Channel MOSFET

2SK3136 Description

2SK3136 Silicon N Channel MOS FET High Speed Power Switching .

2SK3136 Features

* Low on-resistance RDS(on) =4.5 mΩ typ.
* Low drive current
* 4 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004AC-A (Package name: TO-220AB) 123 G REJ03G1068-0400 (Previous: ADE-208-696B) Rev.4.00 Sep 20, 2005 D 1. Gate 2. Drain (F

📥 Download Datasheet

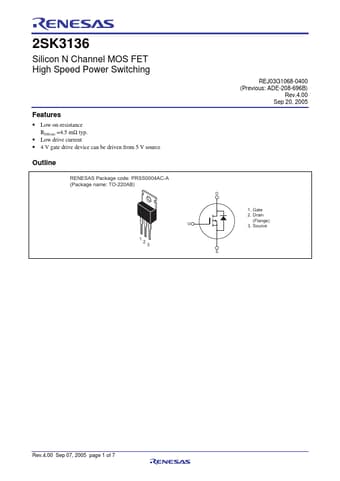

Preview of 2SK3136 PDF
datasheet Preview Page 2 datasheet Preview Page 3
