2SK3147 - Silicon N-Channel Power MOSFET

2SK3147 Description

Data Sheet 2SK3147(L), 2SK3147(S) 100V, 5A, 0.13Ωmax.Silicon N Channel Power MOS FET High Speed Power Switching R07DS1254EJ0400 (Previous: REJ03G10.

2SK3147 Features

* Low on-resistance RDS = 0.1  typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK(L)-(2)) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK(S)) 4 12 3 G D 1. Gate 2. Drain 3. Sour

📥 Download Datasheet

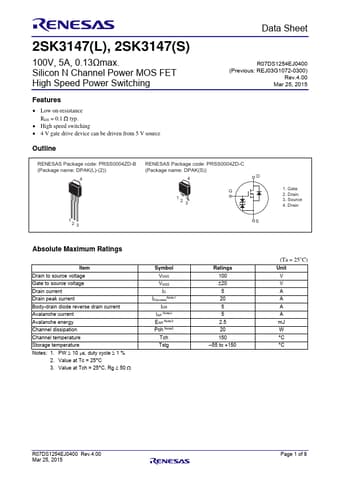

Preview of 2SK3147 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3147
Manufacturer
Renesas ↗
File Size
138.56 KB
Datasheet
2SK3147-Renesas.pdf
Description
Silicon N-Channel Power MOSFET
