2SK3140

N-Channel MOSFET

2SK3140 Features

* Low on-resistance R DS(on) = 6 mΩ typ.

* Low drive current

* 4 V gate drive device can be driven from 5 V source Outline TO

* 220CFM D G 1 2 3 S 1. Gate 2. Drain 3. Source 2SK3140 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source

2SK3140 Datasheet (47.08 KB)

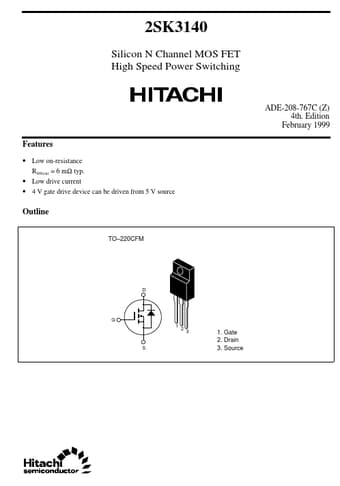

Preview of 2SK3140 PDF

Datasheet Details

Part number:

2SK3140

Manufacturer:

Hitachi Semiconductor

File Size:

47.08 KB

Description:

N-channel mosfet.
