2SK3141 - N-Channel MOSFET

2SK3141 Description

2SK3141 Silicon N Channel MOS FET High Speed Power Switching ADE-208-680B (Z) 3rd.Edition February 1999 .

2SK3141 Features

* Low on-resistance R DS(on) = 4 mΩ typ.
* Low drive current
* 4 V gate drive device can be driven from 5 V source Outline TO
* 220AB D G 1 2 S 3 1. Gate 2. Drain(Flange) 3. Source 2SK3141 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to s

📥 Download Datasheet

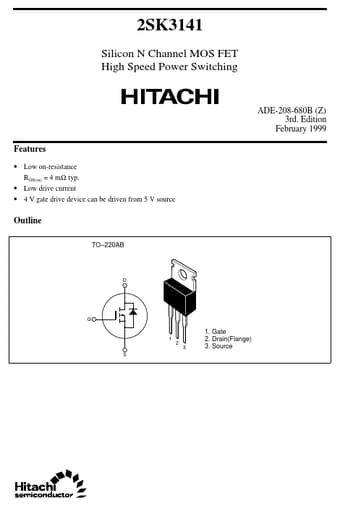

Preview of 2SK3141 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3141
Manufacturer
Hitachi Semiconductor
File Size
51.99 KB
Datasheet
2SK3141_HitachiSemiconductor.pdf
Description
N-Channel MOSFET
