2SK3101 - N-Channel 550V Power MOSFET

2SK3101 Description

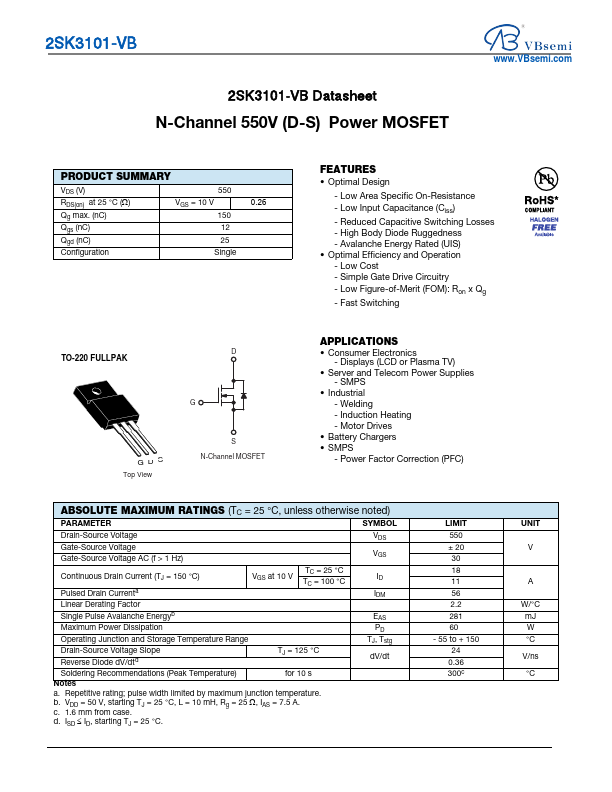

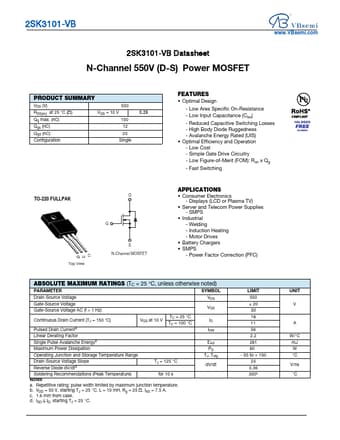

2SK3101-VB 2SK3101-VB Datasheet N-Channel 550V (D-S) Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) at 25 °C (Ω) Qg max.(nC) Qgs (nC).

2SK3101 Features

* Optimal Design - Low Area Specific On-Resistance - Low Input Capacitance (Ciss) - Reduced Capacitive Switching Losses - High Body Diode Ruggedness - Avalanche Energy Rated (UIS)
* Optimal Efficiency and Operation - Low Cost - Simple Gate Drive Circuitry - Low Figure-of-Merit (FOM):

2SK3101 Applications

* Consumer Electronics - Displays (LCD or Plasma TV)
* Server and Telecom Power Supplies - SMPS
* Industrial - Welding - Induction Heating - Motor Drives
* Battery Chargers
* SMPS - Power Factor Correction (PFC) ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless ot
