2SK3147L, 2SK3147 Datasheet - Renesas

2SK3147L Silicon N-Channel Power MOSFET

2SK3147L Features

* Low on-resistance RDS = 0.1  typ.

* High speed switching

* 4 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK(L)-(2)) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK(S)) 4 12 3 G D 1. Gate 2. Drain 3. Sour

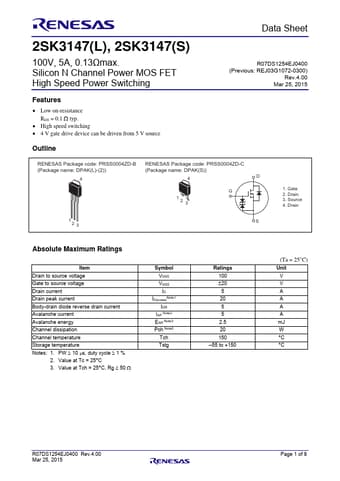

2SK3147-Renesas.pdf

2SK3147L Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SK3147L, 2SK3147. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SK3147L, 2SK3147

Manufacturer:

Renesas ↗

File Size:

138.56 KB

Description:

Silicon n-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: 2SK3147L, 2SK3147.
Please refer to the document for exact specifications by model.
